FIELDCRAFT DOCS
Red Mountain Themes · v1.3.0

/ 04

Customizer

Every option in the Fieldcraft Options panel, section by section — plus the Theme Options admin page, which edits the exact same settings.

Open Appearance → Customize. Every Fieldcraft option lives inside one panel, Fieldcraft Options, split into twelve sections. Color, button-shape, and container-width changes preview live with no reload; the topbar text also updates in the preview pane automatically, via a targeted (selective) refresh of just the announcement strip rather than a full page reload. Every other field (including font pairing, base font size, button style, header style, and section spacing rhythm) applies after you click Publish.

Appearance to Customize, showing the Fieldcraft Options panel expanded to its twelve sections.
Appearance → Customize, showing the Fieldcraft Options panel expanded to its twelve sections.
Setting codes carry the theme prefix

Every setting code listed below carries the fieldcraft_ prefix in actual WordPress code (e.g., fieldcraft_phone_display). The prefix is omitted from the tables below for brevity — use the full name if you're writing code that references theme options.

No code required

Fonts, button shape/style, container width, header style and section spacing are all Customizer dropdowns — the same "no code required" promise as the color swatches. Nothing in this panel needs a child theme or a line of CSS. Every option only writes a CSS-variable override when you change it away from its default, so an untouched install renders byte-identical to the live preview, and picking Publish after switching an option back to its default cleanly removes the override.

The Theme Options page (an alternative editing surface)

Everything documented on this page can also be edited without opening the Customizer at all, from a dedicated admin page: Fieldcraft → Theme Options (wp-admin/admin.php?page=fieldcraft-options). It has the exact same twelve sections, as tabs down the left side, and writes the exact same settings the Customizer controls read and write — there is only one storage location behind both surfaces, so a change made on either one shows up instantly on the other and on the front end.

  1. Go to the Fieldcraft menu (top-level in the wp-admin sidebar), then click Theme Options.
  2. Click a section tab on the left (Colors, Typography, Buttons, Layout, Contact & Identity, Header & Topbar, Home Sections, Home Content, Closer & Service Area, Maintenance Mode, Support & Links, Performance).
  3. Edit any field directly on the page — color pickers, dropdowns, checkboxes, text fields and the range slider all work the same way they do in the Customizer.
  4. Click Save Settings at the bottom. You're redirected back to the same tab you were editing, with a “Settings saved” confirmation.

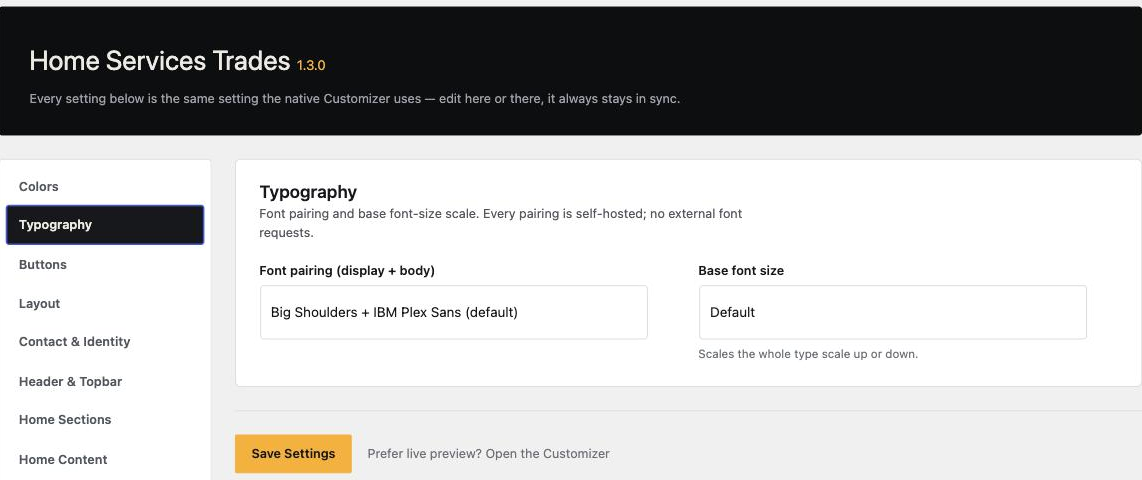

Fieldcraft to Theme Options, Typography tab, showing the font-pairing dropdown and Save Settings button.
Fieldcraft → Theme Options, Typography tab, showing the font-pairing dropdown and Save Settings button.
Which surface should I use?

Use the Customizer when you want to see your change against the live site preview before committing to it (colors, container width and button shape redraw instantly as you adjust them). Use the Theme Options page when you already know exactly what you want to change and would rather edit a plain form — it's faster for bulk edits like filling in every Contact & Identity field at once, and there's no separate preview pane to navigate. Both write to the same settings, so you can freely switch between them at any time.

Colors

Section: Fieldcraft Options → Colors in the Customizer, or the Colors tab on the Theme Options page. Each swatch is a color picker that maps straight to a CSS custom property, so a change here reflows the whole site instantly in the preview.

  1. Go to Appearance → Customize → Fieldcraft Options → Colors.
  2. Click any swatch, e.g. Accent (amber).
  3. Pick a new color from the picker, or type a hex value — the live preview pane updates instantly, with no reload.
  4. Click Publish to make the change live on your actual site.

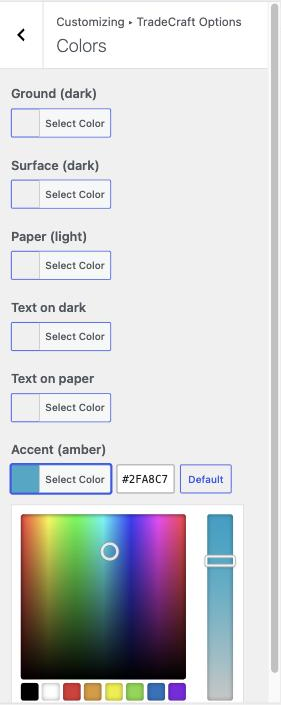

Customizer to Colors section, with the Accent (amber) swatch's color picker open.
Customizer → Colors section, with the Accent (amber) swatch's color picker open.
Ground (dark)Color · live previewSetting color_iron · CSS var --iron · default #0C0E10. The main dark background.
Surface (dark)Color · live previewSetting color_iron_2 · CSS var --iron-2 · default #14171C. Raised dark panels/cards.
Paper (light)Color · live previewSetting color_paper · CSS var --paper · default #EFE9DF. Light-band backgrounds.
Text on darkColor · live previewSetting color_bone · CSS var --bone · default #EDEAE3.
Text on paperColor · live previewSetting color_ink · CSS var --ink · default #16181C.
Accent (amber)Color · live previewSetting color_amber · CSS var --amber · default #FFAD0A. The one hot accent — buttons, links, kicker squares.

Typography

Section: Fieldcraft Options → Typography. All six pairings are self-hosted OFL webfonts — picking any of them (including the default) never makes an external Google Fonts request. The five alternate pairings ship as their own woff2 files and are only loaded on the front end once you actually pick one; a stock install downloads only the default pairing's fonts.

  1. Go to Appearance → Customize → Fieldcraft Options → Typography.
  2. Open the Font pairing (display + body) dropdown and choose one of the six curated pairings (see the list below).
  3. Open the Base font size dropdown if you want to scale the whole type system up or down (Default, Compact or Large).
  4. Click Publish — these two fields apply after a full preview refresh, not instantly, so you'll see a brief reload before the new fonts appear.
Customizer to Typography section, with the Font pairing dropdown open showing all six choices.
Customizer → Typography section, with the Font pairing dropdown open showing all six choices.
Font pairing (display + body)Select · preview refresh · font_pairingDefault big-shoulders (Big Shoulders + IBM Plex Sans). Choose from six curated pairings:
  1. Big Shoulders + IBM Plex Sans (default)
  2. Anton + Inter
  3. Oswald + Roboto
  4. Bebas Neue + Work Sans
  5. Archivo Black + Archivo
  6. Teko + IBM Plex Sans
Maps to the --fd (display) and --fb (body) CSS variables site-wide. See Credits & Licenses → Fonts for the license of every family.
Base font sizeSelect · preview refresh · type_scaleDefault default (100%). Scales the whole type system up or down via the --root-size CSS variable — choices are Default (100%), Compact (93.75%) and Large (106.25%).

Buttons

Section: Fieldcraft Options → Buttons. Controls the shape and fill of every button site-wide (header CTA, hero buttons, form submits, pattern buttons).

  1. Go to Appearance → Customize → Fieldcraft Options → Buttons.
  2. Choose a Button shape — Square (default), Rounded or Pill. This one redraws live as you pick.
  3. Choose a Button style — Fill (solid accent-color button) or Outline (transparent with a border). Click Publish to see this one, since it applies on refresh.

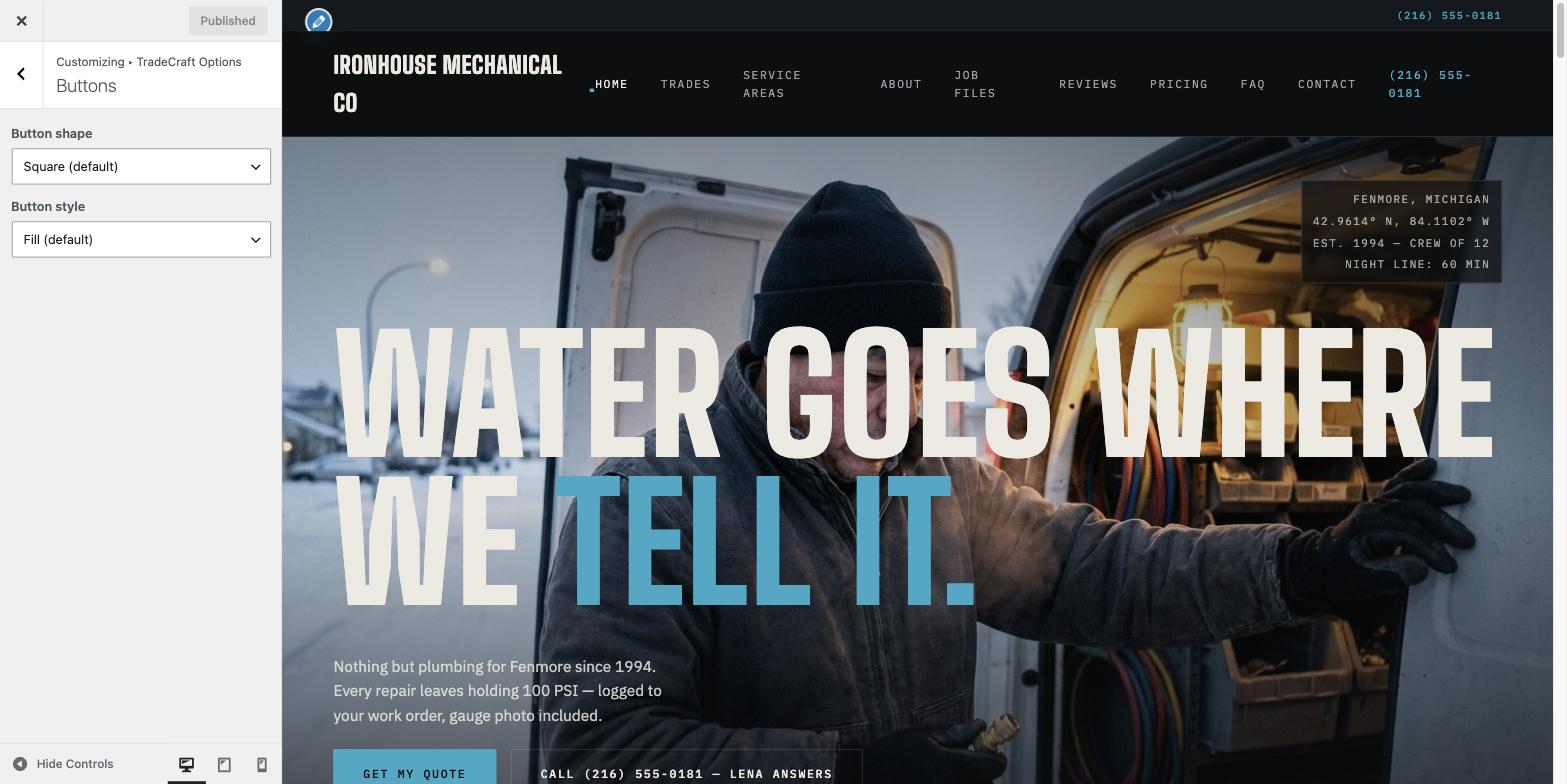

Customizer to Buttons section, showing the Button shape and Button style dropdowns with the live preview's hero button reflecting the current choice.
Customizer → Buttons section, showing the Button shape and Button style dropdowns with the live preview's hero button reflecting the current choice.
Button shapeSelect · live preview · button_shapeDefault square. Choices: Square (default, sharp corners), Rounded, Pill. Maps to the --btn-radius CSS variable.
Button styleSelect · preview refresh · button_styleDefault fill (solid accent-color button). Choices: Fill (default) or Outline (transparent with a border, accent-color text).

Layout

Section: Fieldcraft Options → Layout. Site-wide structural controls — none of them touch content, only how wide, how tall and how the header sits.

  1. Go to Appearance → Customize → Fieldcraft Options → Layout.
  2. Choose a Container max-width — Standard (1440px), Wide (1600px) or Full width. This one redraws live.
  3. Choose a Header style — Solid (default) or Transparent (overlays the header on the hero image on the front page only, until the visitor scrolls). Click Publish to see this one.
  4. Choose a Section spacing rhythm — Default, Compact or Roomy. This one also redraws live.

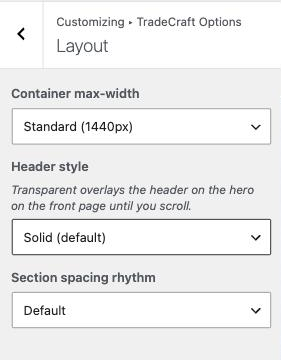

Customizer to Layout section, with Container max-width, Header style and Section spacing rhythm dropdowns visible.
Customizer → Layout section, with Container max-width, Header style and Section spacing rhythm dropdowns visible.
Container max-widthSelect · live preview · container_widthDefault standard (1440px). Choices: Standard (1440px, default), Wide (1600px), Full width (100%). Maps to the --container-content CSS variable that bounds every section's content width.
Header styleSelect · preview refresh · header_styleDefault solid (sticky scrim header on every page). Choice transparent overlays the header on the hero image on the front page only, until the visitor scrolls — on every other page the header is always solid.
Section spacing rhythmSelect · live preview · section_rhythmDefault default. Choices: Default, Compact (tighter vertical spacing between sections), Roomy (looser vertical spacing). Maps to the --section-y CSS variable used by every section's top/bottom padding.

Contact & Identity

Section: Fieldcraft Options → Contact & Identity. Every field here is plain text — there is no live preview, so changes appear after you click Publish (or Save Settings on the Theme Options page).

  1. Go to Appearance → Customize → Fieldcraft Options → Contact & Identity (or Fieldcraft → Theme Options → Contact & Identity).
  2. Replace Phone (display) with your real business number — this also becomes the number the header/footer “Call” buttons actually dial (the tel: link is generated from this field automatically; there's no separate field to keep in sync).
  3. Fill in Contact email, Address, Hours and your real License / insurance line before launch — the shipped defaults are demo placeholders.
  4. Click Publish (Customizer) or Save Settings (Theme Options page).

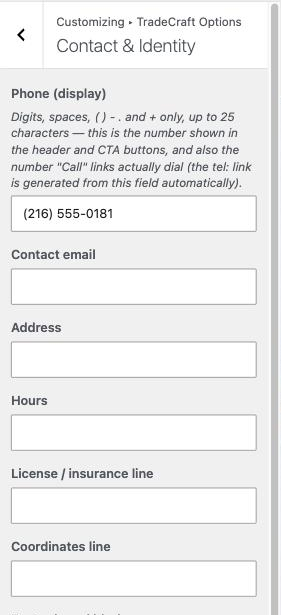

Customizer to Contact & Identity section, showing the Phone, email, address, hours and license fields.
Customizer → Contact & Identity section, showing the Phone, email, address, hours and license fields.
Phone (display)TextSetting phone_display · default (216) 555-0181. The human-readable phone shown in the header and footer. The tel: click-to-call link is auto-derived from this value — only the digits (and a leading +, if present) are extracted and used, so there is no separate tel: link field; they are always kept in sync.
Contact emailText (email)Setting footer_email · default dispatch@ironhousemech.example.
AddressTextSetting footer_address · default 214 Foundry Row, Winslow, OH.
HoursTextSetting footer_hours · default Office Mon–Sat 7:00–17:00.
License / insurance lineTextSetting footer_license · default OH LIC #M-41172 · INSURED TO $2,000,000. Replace with your own real license number before launch.
Coordinates lineTextSetting footer_coords · default 41.0308° N, 81.5217° W. Cosmetic mono detail in the footer.
Footer brand blurbTextareaSetting footer_blurb · empty by default (falls back to the theme's built-in default copy). Add your own one-line footer description to override it.

Header & Topbar

Section: Fieldcraft Options → Header & Topbar.

  1. Go to Appearance → Customize → Fieldcraft Options → Header & Topbar.
  2. To show a shorter brand name in the header logo than your full Site Title, type it into Header wordmark — leave it empty to fall back to Settings → General → Site Title.
  3. Tick or untick Show announcement topbar to toggle the thin strip above the header.
  4. Edit Topbar announcement text — watch the preview pane's topbar update as you type, via a targeted refresh of just that strip.

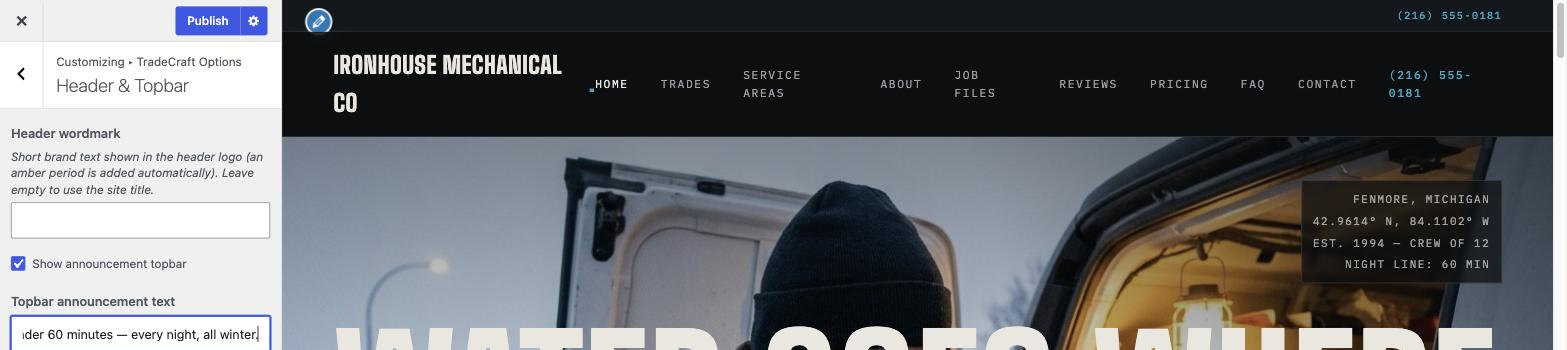

Customizer to Header & Topbar section, with the Topbar announcement text field being edited and the preview pane's strip updating live.
Customizer → Header & Topbar section, with the Topbar announcement text field being edited and the preview pane's strip updating live.
Header wordmarkText · preview refresh · wordmarkSetting wordmark · empty by default, which falls back to your Site Title (Settings → General). The header logo always appends its own amber accent period automatically, so if your text (or site title) already ends in a period — e.g. “Ironhouse Mechanical Co.” — that trailing period is stripped first to avoid showing two in a row. Use this field when you want the header logo to show a shorter brand name than your full site title (only applies while no custom logo image is set — see Site Setup → Logo).
Show announcement topbarCheckboxSetting show_topbar · default on. Toggles the thin announcement strip above the header.
Topbar announcement textText · selective refreshSetting topbar_text · default NIGHT LINE STAFFED — MEDIAN DOOR-TIME 47 MIN. Updates in the preview pane automatically as you edit, using WordPress's selective (partial) refresh — only the announcement strip itself redraws, not the whole preview pane, so there's no full-page reload.

Home Sections

Section: Fieldcraft Options → Home Sections. Every checkbox defaults to on. Turning one off removes that band from the front page entirely (only when the front page is rendering the demo composition; see Site Setup → Front page setup).

  1. Go to Appearance → Customize → Fieldcraft Options → Home Sections.
  2. Untick any section you don't want on your home page — for example, untick Team band if you don't have crew photos yet.
  3. Click Publish — the section disappears from your live front page.

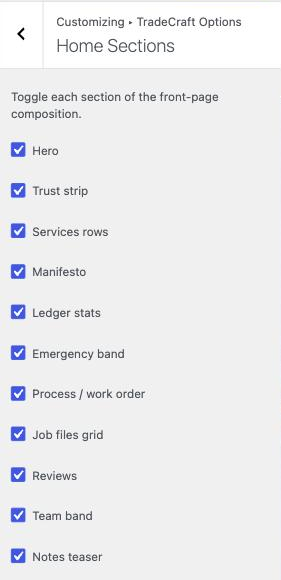

Customizer to Home Sections, showing all eleven section checkboxes.
Customizer → Home Sections, showing all eleven section checkboxes.
HeroCheckbox · home_show_heroThe full-bleed opening hero band.
Trust stripCheckbox · home_show_trustMono credentials/license strip.
Services rowsCheckbox · home_show_servicesNumbered trade rows.
ManifestoCheckbox · home_show_manifestoThe brand's house-rules statement band.
Ledger statsCheckbox · home_show_ledgerCount-up operational stats.
Emergency bandCheckbox · home_show_emergencyAmber call-to-action band with the phone number.
Process / work orderCheckbox · home_show_processThe step-by-step "how a job runs" section.
Job files gridCheckbox · home_show_jobsBefore/after job-file photo grid.
ReviewsCheckbox · home_show_reviewsCustomer review excerpts.
Team bandCheckbox · home_show_teamCrew photo band.
Notes teaserCheckbox · home_show_notesLatest blog posts teaser.

Home Content

Section: Fieldcraft Options → Home Content. The most-edited front-page copy, surfaced as direct Customizer fields so you don't have to touch a demo-import file to change them. Every other front-page string is theme-mod / demo-import driven only — it's set by whichever demo you import (see Demo Content) and isn't exposed as its own Customizer field. Leave any field below empty to keep the flagship (Ironhouse) default.

  1. Go to Appearance → Customize → Fieldcraft Options → Home Content.
  2. Type your own copy into any field — for example, replace Services heading with your own headline. Fields marked “HTML allowed” accept a <br> for a manual line break and <em> for the italic accent word.
  3. To change the three animated count-up numbers in the Ledger stats band, edit Ledger — stat 1/2/3 number — digits only, Fieldcraft adds the comma grouping and count-up animation automatically.
  4. Click Publish.

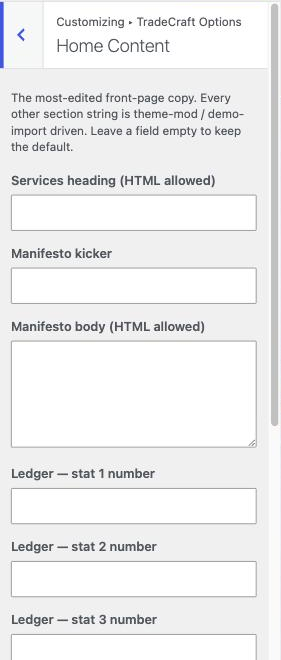

Customizer to Home Content section, showing the Services heading and Ledger stat number fields.
Customizer → Home Content section, showing the Services heading and Ledger stat number fields.
Services headingText (HTML allowed) · services_headingDefault Five ways a<br>house <em>breaks.</em>. Heading above the numbered trade rows.
Manifesto kickerText · manifesto_kickerDefault THE HOUSE RULES. Small mono label above the manifesto heading.
Manifesto bodyTextarea (HTML allowed) · manifesto_bodyDefault the brand's house-rules statement paragraph. The main copy block of the Manifesto band.
Ledger — stat 1 numberText · ledger_stat_1_numDefault 31406. Digits only — rendered with comma grouping (31,406) and used as the count-up target for "Work orders since 1987."
Ledger — stat 2 numberText · ledger_stat_2_numDefault 412. Digits only — count-up target for "Parts on every truck."
Ledger — stat 3 numberText · ledger_stat_3_numDefault 47. Digits only — count-up target for "Median night response, minutes."
Emergency band kickerText · emergency_kickerDefault NO HEAT? WATER RISING? BREAKER WON'T HOLD?. Small mono label above the Emergency band heading.
Emergency band headingText (HTML allowed) · emergency_headingDefault It's never<br><em>a machine.</em>.
Emergency band support textTextarea · emergency_supportDefault the "night line is Rennie Park" paragraph under the Emergency band heading. The phone number itself is a separate field — see Contact & Identity.
Reviews headingText (HTML allowed) · reviews_headingDefault Word gets<br><em>around.</em>.
Team headingText (HTML allowed) · team_headingDefault You'll know<br>who's <em>knocking.</em>.

Closer & Service Area

Section: Fieldcraft Options → Closer & Service Area. These two toggles control the pair of bands that repeat near the bottom of every inner page (not just the home page).

  1. Go to Appearance → Customize → Fieldcraft Options → Closer & Service Area.
  2. Untick Show the quote-form band site-wide or Show the service-area ring strip site-wide to hide either band everywhere it repeats.
  3. Replace Service-area towns with your own comma-separated list of towns you actually service.
  4. Click Publish.
Customizer to Closer & Service Area section, showing the two site-wide toggles and the Service-area towns field.
Customizer → Closer & Service Area section, showing the two site-wide toggles and the Service-area towns field.
Show the quote-form band site-wideCheckbox · show_closerThe "Tell us what broke" quote-form band that appears near the bottom of inner pages.
Show the service-area ring strip site-wideCheckbox · show_ringThe mono service-area towns strip.
Service-area townsText (comma-separated) · ring_townsDefault Winslow, Harlan Township, Bell Creek, Dunmore, Ostrander Falls. Replace with your own service-area towns.

Maintenance Mode

Section: Fieldcraft Options → Maintenance Mode. Shows a coming-soon page to logged-out visitors while you finish setup — logged-in users who can edit theme options always see the real site, so you can keep working behind the gate.

  1. Go to Appearance → Customize → Fieldcraft Options → Maintenance Mode.
  2. Edit the Heading and Message fields to say whatever you'd like visitors to see.
  3. Tick Enable maintenance / coming-soon mode when you're ready to gate the site — log out or open a private/incognito window to confirm what logged-out visitors see.
  4. Click Publish. Untick the same checkbox and publish again whenever you're ready to go live.

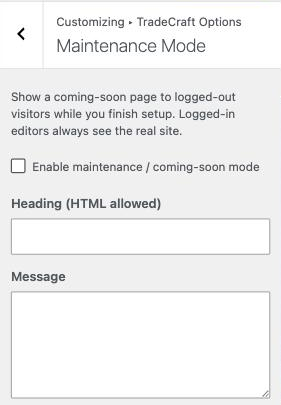

Customizer to Maintenance Mode section, with the Enable checkbox and the Heading/Message fields.
Customizer → Maintenance Mode section, with the Enable checkbox and the Heading/Message fields.
Enable maintenance / coming-soon modeCheckbox · maintenance_modeDefault off. When on, every front-end request from a logged-out visitor is served the coming-soon template instead of the real site (wp-admin, login, AJAX, REST and feeds are never gated).
Heading (HTML allowed)Text · maintenance_headingDefault The site’s on<br><em>the bench.</em>. Basic HTML (line breaks, emphasis) is allowed and kept safe with wp_kses_post.
MessageTextarea · maintenance_messageDefault We rebuild this the way we rebuild anything — quoted, scheduled, done once. The phone works the whole time.

Section: Fieldcraft Options → Support & Links. The URLs used by the "Read the docs", "Get support" and "Follow" buttons on the theme dashboard (the Fieldcraft admin menu, top-level in the wp-admin sidebar) — point these at your own hosted docs, support channel or profile if you're rebranding the theme for a client.

  1. Go to Appearance → Customize → Fieldcraft Options → Support & Links.
  2. Replace Documentation URL, Support URL and/or Follow-us URL with your own destinations.
  3. Click Publish — the Fieldcraft dashboard's Welcome page buttons update immediately.

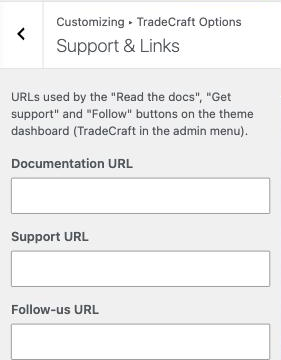

Customizer to Support & Links section, showing the three URL fields.
Customizer → Support & Links section, showing the three URL fields.
Documentation URLURL · documentation_urlDefault points at the hosted Fieldcraft docs. Powers the dashboard's "Read the docs" button.
Support URLURL · support_urlDefault points at the hosted docs' FAQ (which answers "Where do I get support?"). Powers the dashboard's "Get support" button.
Follow-us URLURL · social_urlDefault points at the ThemeForest author profile. Powers the dashboard's "Follow" button.

Performance

Section: Fieldcraft Options → Performance. Six optional weight-trimming and font-tuning controls. The four checkbox toggles default off (so the theme behaves exactly like core WordPress until you opt in), except perf_preload_fonts which defaults on.

  1. Go to Appearance → Customize → Fieldcraft Options → Performance.
  2. Tick Disable WordPress emoji script/styles, Disable jQuery Migrate and/or Disable the oEmbed front-end script if you don't need them — check your other active plugins first (see the callout below).
  3. Drag the JPEG compression quality slider if you want smaller image files (lower number) or higher fidelity (higher number).
  4. Click Publish.

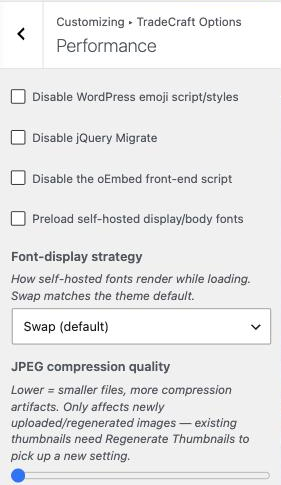

Customizer to Performance section, showing the four checkboxes, the Font-display select and the JPEG quality range slider.
Customizer → Performance section, showing the four checkboxes, the Font-display select and the JPEG quality range slider.
Disable WordPress emoji script/stylesCheckbox · perf_disable_emojiSetting perf_disable_emoji · default off. Dequeues core's wp-emoji-release.min.js and its inline styles on the front end. Leave off if you rely on native emoji rendering for older browsers.
Disable jQuery MigrateCheckbox · perf_disable_jquery_migrateSetting perf_disable_jquery_migrate · default off. Removes the jquery-migrate dependency from core's bundled jQuery. Only enable this if you've confirmed no plugin on your site depends on jQuery Migrate.
Disable the oEmbed front-end scriptCheckbox · perf_disable_oembedSetting perf_disable_oembed · default off. Removes WordPress's oEmbed front-end script if you don't embed remote content (tweets, videos, etc.).
Preload self-hosted display/body fontsCheckbox · perf_preload_fontsSetting perf_preload_fonts · default on. Adds <link rel="preload"> tags for the active font pairing's WOFF2 files in the document head, speeding up initial text rendering. Safe to leave on; only disable if another plugin already preloads fonts or if preloading causes issues with your chosen font pairing.
Font-display strategySelect · perf_font_displaySetting perf_font_display · default swap. Controls how self-hosted fonts render while loading (via CSS font-display property). Choices: Swap (default, show fallback immediately then swap in real font), Auto, Block, Fallback, Optional. Swap matches the theme default and is recommended for most sites.
JPEG compression qualityRange slider (50–100) · perf_jpeg_qualitySetting perf_jpeg_quality · default 82. Sets the quality level (0–100) for newly uploaded or regenerated JPEG images. Lower values = smaller files but more compression artifacts. Note: This only affects images uploaded or regenerated after you change this setting; existing thumbnails require the Regenerate Thumbnails plugin to pick up the new quality level.
Live preview vs. save

Colors (and the site title/tagline) redraw instantly in the Customizer preview pane as you pick/type — no reload, no save required to see them. The topbar text updates via a selective (partial) refresh — only the announcement strip itself redraws, still with no full-page reload. Every other field (contact details, toggles, service-area towns) instead triggers an automatic full refresh of the preview pane once you change the field, so you still see your change without saving — it just isn't an instant redraw. Either way, click Publish to make the change live on your actual site. On the Theme Options page, every field applies only after you click Save Settings — there is no live preview pane on that surface.
